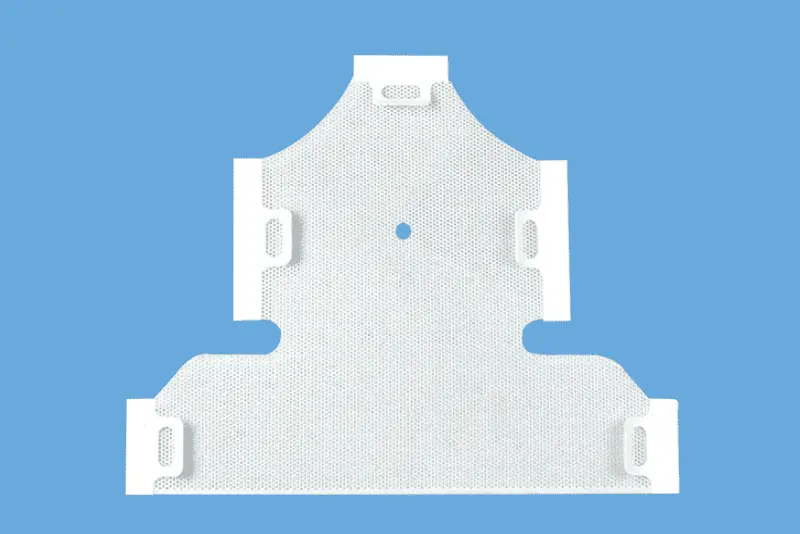

5-Point Head & Neck & Shoulder Mask

The 5 Point Head & Neck & Shoulder Mask is made of the highest quality thermoplastic for patient immobilization in radiation oncology applications. It is easy to shape and use and perfectly fits the contours of the patient’s body, adding comfort and fixity. Contact us to learn more.

Description of 5-Point Head & Neck & Shoulder Mask



5-Point Head & Neck & Shoulder Mask is a kind of Radioactivey Mask, which is one of the used materials in the radiotherapy of head tumors. It is mainly used to fix the head, neck and shoulder of patients in radiotherapy, reduce the unnecessary damage to normal tissues caused by the movement of patients, effectively improve the accuracy of radiotherapy positioning and placement, and improve the absorption of local lesions to radiation.

Characteristics of 5-Point Head & Neck & Shoulder Mask



1. Easy to form and use;

2. Perfect fit to the patient’s body contour, increase comfort and fixity;

3. A thin mesh shape with a clinically compatible frame and clap can be used with most radiotherapy positioning devices;

4. Shaping and fixing are easy to operate, and the shape is beautiful;

5. After treatment, the material will not adhere to the patient’s hair, skin or the phenomenon of material adhesion itself;

6. It has a memory function. When the plasticity is not satisfied, it can be put into hot water at 60-70℃ again, softened again, and plasticized again;

Specifications of 5-Point Head & Neck & Shoulder Mask

Product name 5-Point Head & Neck & Shoulder Mask
Origin China
Certifications ISO CE  FDA
Heating Temp 60-70℃degrees
Operation time 5-10 minutes
Material PLA: bio-based polylactic acid (PLA) plastic
Size 455*548mm, 538*480mm, 439*393mm, 454*479mm
Perforation 22%, 36%, 42%
Thickness 2.4mm, 3.2mm
Color White/ Green
Usage Fix the patient’s position in radiotherapy

✱Product specifications and models can be customized according to customer requirements
